Refrigerant Charge Testing

What Is Refrigerant Charge Testing?

Refrigerant charge verification in Sacramento checks a qualifying air-conditioning or heat-pump installation against the applicable equipment and California energy-code criteria. It is an independent field verification when the project's approved compliance documents call for it, not a replacement for HVAC installation, service, or energy modeling.

Under California's Building Energy Efficiency Standards (Title 24, Part 6), refrigerant charge verification must be performed and documented when the approved compliance requirements call for it. Applicable scopes can include new construction and qualifying HVAC system replacements or alterations. Review the project documents before scheduling because equipment, climate conditions, and the selected compliance approach affect the required verification.

Whether you are a homeowner with a new air conditioning installation, a contractor completing an HVAC change-out, or a builder working on new construction, understanding refrigerant charge testing and its role in Title 24 compliance is essential.

When Is Refrigerant Charge Testing Required?

The approved compliance documents determine whether refrigerant charge verification applies. Project types that may list it include:

• New residential construction with qualifying cooling equipment
• HVAC system replacements or change-outs when the selected compliance approach requires verification
• System alterations identified in the approved project forms

Applicability and method depend on the approved documents, equipment and metering device, manufacturer instructions, outdoor and indoor conditions, and the criteria allowed for the project. If field conditions do not support the listed method, the project team may need to coordinate an allowed alternative or return visit.

The Role of the HERS Rater

The assigned ECC/HERS rater independently records the applicable refrigerant-charge measurements and result. The rater does not perform the HVAC installation or adjust the refrigerant charge; the installing or servicing contractor remains responsible for equipment work and corrections.

When construction readiness and the compliance scope align, refrigerant charge testing may be coordinated with duct leakage testing, fan watt draw, airflow, and other required verifications.

After testing, the rater completes the applicable field-verification documentation and workflow identified for the project. That result addresses the listed measure; it does not by itself establish that every permit or energy-code requirement is complete.

Methods of Refrigerant Charge Verification

There are three primary methods used to verify that an HVAC system has the correct refrigerant charge. The method used depends on the type of metering device in the system and the conditions of the installation.

Superheat Method

The superheat method is used for systems equipped with fixed metering devices, such as piston-type or capillary tube metering devices. These are commonly found in older systems and some builder-grade equipment.

How it works:

1. The HVAC system is turned on and run in cooling mode until it reaches steady-state operating conditions (typically 10–15 minutes of continuous operation).

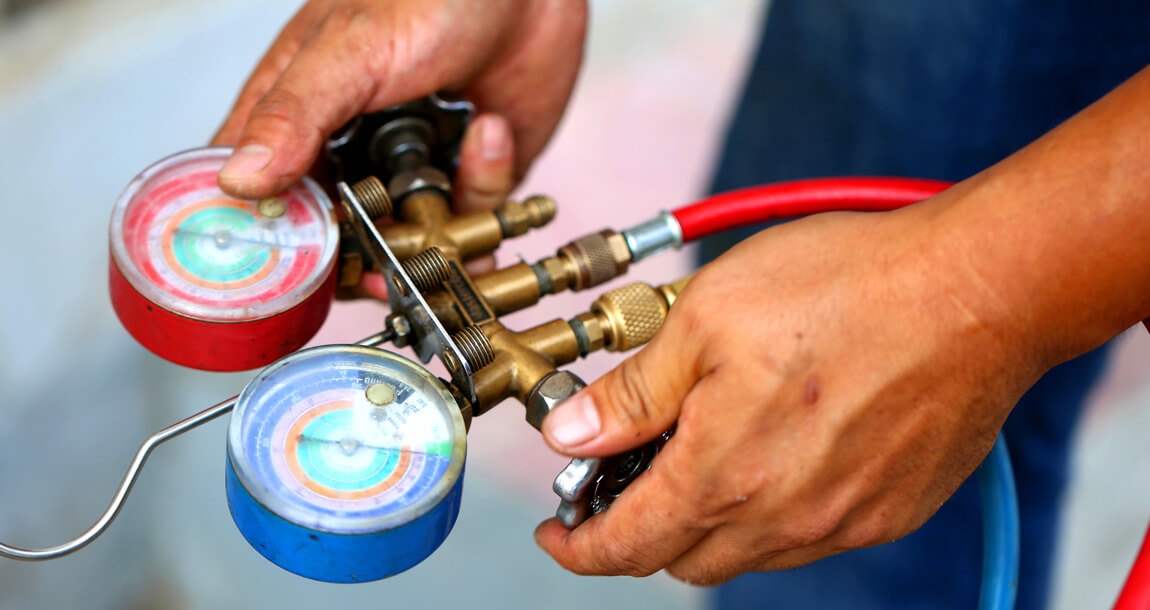

2. The technician or HERS rater measures the suction line pressure at the service valve using a refrigerant manifold gauge set or digital gauges.
3. The suction line temperature is measured at the same location using a pipe-clamp thermometer or digital temperature probe.
4. Using a pressure-temperature chart for the specific refrigerant type (e.g., R-410A, R-22), the saturation temperature corresponding to the measured suction pressure is determined.
5. Superheat is calculated by subtracting the saturation temperature from the actual suction line temperature: Superheat = Suction Line Temperature − Saturation Temperature.
6. The calculated superheat value is compared against the manufacturer's specifications, which account for outdoor ambient temperature and indoor wet-bulb temperature.

What the results indicate: If superheat is too high, the system is likely undercharged (not enough refrigerant). If superheat is too low, the system may be overcharged. Either condition reduces efficiency and can damage the compressor.

Equipment used: Refrigerant manifold gauges or digital gauge set, pipe-clamp thermometer or thermocouple, wet-bulb thermometer or psychrometer, manufacturer specification charts.

Subcooling Method

The subcooling method is used for systems equipped with thermostatic expansion valves (TXVs) or electronic expansion valves. TXV systems are standard in most modern residential HVAC equipment and are designed to regulate refrigerant flow more precisely.

How it works:

1. The system is operated in cooling mode until it reaches steady-state conditions.
2. The liquid line pressure is measured at the outdoor condensing unit's service valve using a manifold gauge set or digital gauges.
3. The liquid line temperature is measured at the same point using a pipe-clamp thermometer or digital probe.
4. The saturation temperature (also called condensing temperature) corresponding to the measured liquid line pressure is found using a pressure-temperature chart for the refrigerant type.
5. Subcooling is calculated by subtracting the actual liquid line temperature from the saturation temperature: Subcooling = Saturation Temperature − Liquid Line Temperature.
6. The result is compared against the manufacturer's specified subcooling value, which is typically listed on the outdoor unit's data plate.

What the results indicate: If subcooling is too low, the system is likely undercharged. If subcooling is too high, the system may be overcharged. Proper subcooling confirms that liquid refrigerant leaving the condenser is adequately cooled before entering the metering device.

Equipment used: Refrigerant manifold gauges or digital gauge set, pipe-clamp thermometer or thermocouple, manufacturer data plate or specification sheet.

Weigh-In Method

The weigh-in method (also called the gravimetric method) is an alternative approach that may be used when conditions make superheat or subcooling measurements impractical, or when starting with a completely empty system.

How it works:

1. All refrigerant is recovered from the system into a recovery tank using an EPA-approved refrigerant recovery machine.
2. The system is evacuated using a vacuum pump to remove moisture and non-condensable gases.
3. The exact amount of refrigerant specified by the manufacturer is weighed in using a digital refrigerant scale. The charge amount is listed on the outdoor unit's data plate and may need to be adjusted for line set length.
4. Refrigerant is introduced into the system from the supply tank while monitoring the scale to achieve the precise factory-specified charge.

What the results indicate: By weighing in the exact manufacturer-specified charge, the system is set to its designed operating parameters. This method eliminates variables associated with temperature and pressure measurements.

Equipment used: EPA-approved refrigerant recovery machine, vacuum pump with micron gauge, digital refrigerant scale (accurate to ±0.5 oz), refrigerant supply tank, manifold gauge set.

Step-by-Step Process of a Refrigerant Charge Test

Whether using the superheat, subcooling, or weigh-in method, the general process of a refrigerant charge test follows a consistent sequence:

1. System operation: The HVAC system is turned on and run in cooling mode. Both the indoor and outdoor units must be operational.
2. Steady-state conditions: The system is allowed to run for a sufficient period (typically 10–15 minutes) to reach stable operating temperatures and pressures. Outdoor ambient conditions and indoor conditions are noted.
3. Measurements: Pressures are read at the service valves using calibrated gauges. Temperatures are measured at the appropriate refrigerant lines using pipe-clamp thermometers or digital probes. Indoor airflow is verified to be within the acceptable range — restricted airflow can produce misleading charge readings.
4. Calculations: Superheat or subcooling values are calculated based on the measured pressures and temperatures. For the weigh-in method, the exact weight of refrigerant added is recorded.
5. Comparison to specifications: The calculated values are compared against the equipment manufacturer's stated specifications. Acceptable tolerances are defined by the manufacturer and Title 24 compliance criteria.
6. Documentation and submission: The HERS rater records the test results — including all measured values, calculated results, pass/fail determination, and system identification information. These results are submitted to the appropriate HERS registry to document Title 24 compliance for the project. This documentation becomes part of the permanent compliance record for the building permit.

Why Proper Refrigerant Charge Matters

The refrigerant charge in an HVAC system directly affects nearly every aspect of its operation. A system that is not properly charged will experience a range of problems:

Undercharged Systems (Too Little Refrigerant)

• Reduced cooling capacity: The system cannot absorb enough heat from the indoor air, resulting in longer run times and inadequate comfort.
• Higher energy bills: The compressor works harder and runs longer to compensate for the reduced cooling capacity, consuming more electricity.
• Compressor overheating: With insufficient refrigerant, the compressor can overheat because the suction gas (which helps cool the compressor motor) is at a higher temperature. This can lead to premature compressor failure — the most expensive component to replace.
• Ice formation on the evaporator coil: Low refrigerant causes the evaporator coil temperature to drop below freezing, causing moisture in the air to freeze on the coil and further restrict airflow.

Overcharged Systems (Too Much Refrigerant)

• Reduced efficiency: Excess refrigerant causes abnormally high pressures in the system, forcing the compressor to work against greater resistance.
• Liquid slugging: In severe cases, liquid refrigerant can enter the compressor — a condition known as liquid slugging or liquid floodback — which can cause immediate mechanical damage.
• Higher energy consumption: Elevated head pressures mean the compressor draws more power, increasing energy costs.
• Shortened equipment lifespan: The added stress on the compressor and other components accelerates wear and reduces the overall life of the system.

Connection to California's Energy Goals

California's Building Energy Efficiency Standards use project-specific compliance measures to address energy performance. When refrigerant charge verification is listed, the field result documents one aspect of the installed cooling system against the applicable project and equipment criteria.

Correct charge supports intended cooling performance, while an out-of-range result can point to work that the HVAC contractor should evaluate. Preparing the system and required documents before the appointment can reduce avoidable corrections or return visits.

Schedule Your Refrigerant Charge Testing with Poppy Energy

At Poppy Energy, our ECC/HERS raters provide refrigerant charge verification for qualifying new construction and HVAC replacement projects. We record the applicable field measurements and result for the project's California compliance documentation.

Our team coordinates refrigerant charge testing alongside duct leakage testing, fan watt draw verification, and other required ECC/HERS inspections when project timing allows.

Contact us today to schedule refrigerant charge testing or learn more about our ECC/HERS field-verification services. Call us at (916) 306-5535 or fill out the form on our website for a project quote.
